Control All Low Voltage Lights With One Dimmer
The Universal Low Voltage LED Dimmer is designed to seamlessly dim 12V-24V lamps, LED strips, and LED bulbs. Experience flicker-free, full-range dimming for MR16, MR11, G4, and other LED lights. Unlike most dimmers limited to certain bulb types and prone to flickering or incomplete dimming ranges, our proprietary Adaptive Pulse Modification (APM) technology ensures smooth, comprehensive dimming capabilities. APM allows our PWM dimmer to control lamps other dimmers cannot. Upgrade your low voltage lighting with the versatile Universal LED Dimmer.

Product Highlights:

• PWM Technology for Flicker-Free Dimming at All Levels
• Seamless Dimming of Challenging LEDs, Strips, and Rigid Fixtures
• Advanced Safety with Overheat, No-Load, Overload, & Short Circuit Protection
• Compatible with Momentary Switches & Other Control Devices
• Accepts 0-10V Input for Centralized 3rd Party System Integration
• Simple Synchronization Capability for Controlling Larger Loads
• Adjustable Minimum Brightness via Built-In Potentiometer

Technical Specs:

• Input Voltage: 6-30vDC
• Input Current: 5 Amps / 60W (12v) 120W (24v)
• Output Current: 5 Amps / 60W (12v) 120W (24v)
• Dimming Mode: Adaptive Pulse Modification PWM (390Hz)
• Dimming range: 0-100%
• Control voltage: 1-10vDC (0V - OFF)
• Dimming Control Options:
• 0-10 V control voltage
• 100KOhm potenciometer
• Open collector, Dry Dontact
• Single momentary switch
• Double (up/down) momentary switch

Dimensions:

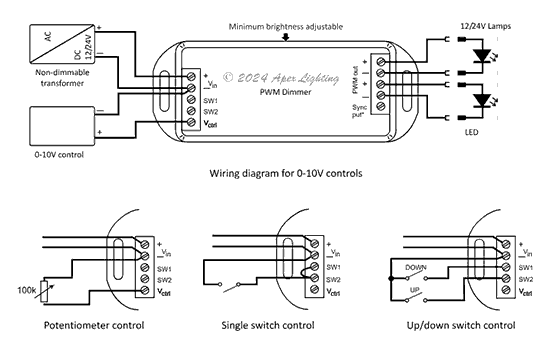

Wiring Diagram:

What's in the Box:

• (1) Dimmer
