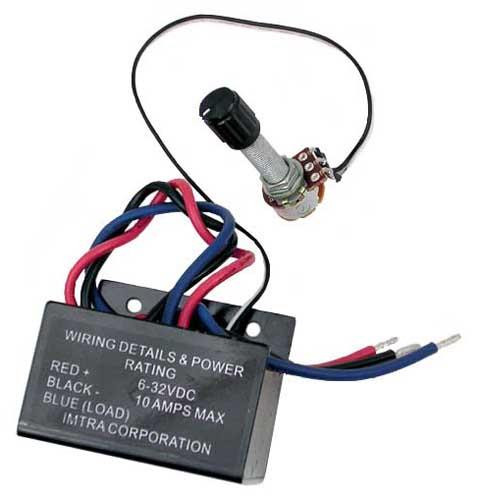

Rotary DC Dimmer 10 Amps

Our "VPC" Rotary Dimmers are available in a wide range of power options. They incorporate a full positive off position eliminating the need for an additional on-off switch. The units have a 10" wire lead connecting the remote potentiometer. Black control knobs are supplied (other knob options are available). CE approved.

Product Highlights:

• Dimming: 0-100%
• Wide Input Range: 6-32VDC
• Power Saving Feature
• Full On/Off
• Electrical Protection: Short Circuit
• EMI Shielding

Technical Specs:

• 6-32V DC
• 120W Load Rating at 12V or 240W at 24V
• 1” Stem Length
• 10a Fuse Rating

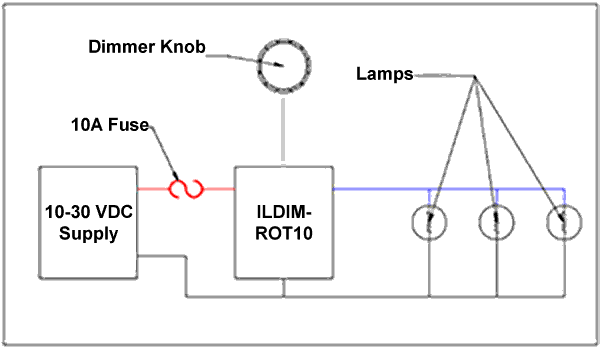

Wiring Diagram:

What's in the Box:

• (1) Dimmer with knob
